HDPE Spiral Corrugated Plastic Pipe Extruding Machine
Short Description:
The spiral corrugated pipe product has special spiral physical structure, the pipe material mechanical performance is good, the compressive strength, pipe buried under deformation, inner spiral uniform cable around the cooling efficiency and effectively protect the security of the cable.
HDPE PVC Sprial double Plastic Corrugated Pipe Production Line
Qingdao Cuishi plastic machinery Co., LTD is focusing on research and development of the continuous production of PE,PVC corrugated pipe production line manufacturing since 1999.
The spiral corrugated pipe product has special spiral physical structure, the pipe material mechanical performance is good, the compressive strength, pipe buried under deformation, inner spiral uniform cable around the cooling efficiency and effectively protect the security of the cable.
This kind of spiral corrugated pipe is high temperature resistance, corrosion resistance, wear resistance, high strength, widely used in bridge prestressed pipe, underground cable threading sheath, etc.
The machine inclued: SJSZ80/156 conical twin screw extruder, double die head mold,double pipe forming machine, cutting machine, stacking machine. Product material is PVC/PE, optimal pipe diameter range for Φ 50-200 mm Φ. Simple operation, good integrity, continuous and stable production, low noise, high efficiency, long service life.

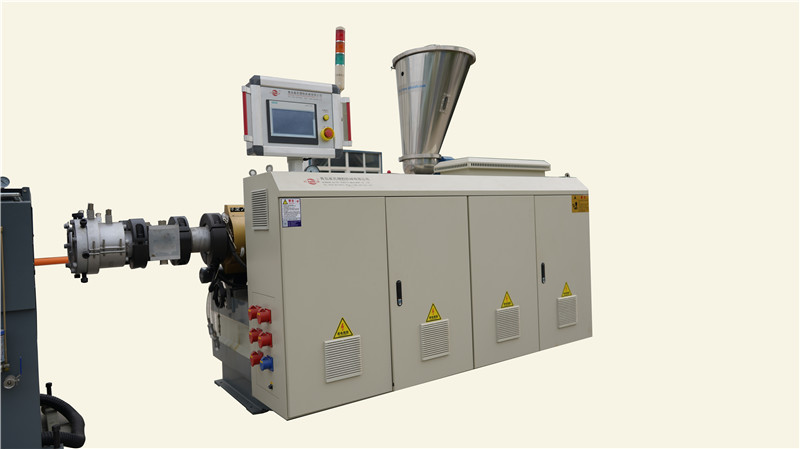

The SJSZ80/156 conical twin screw extruder with servo motor 55kw
1.1 servo motor 52KW 1 set
1.2. Servo motor variable frequency drive (Huichuan) 52KW 1 set
1) Screw and barrel (demaji)
texture of material 38CrMoAlA
Internal surface treatment Nitriding, diffractive grinding
Heating mode Cast aluminum heating ring heating power 30kw
Cooling system Barrel fan cooling
Cooling power 250w × four
3) Reducer (European Code)- box material HT200
- gear form Helical gear - gear material 20CrMnTi
- gear surface heat treatment Tooth surface quenching
- cold mode Internal circulating water cooling
4) Motor drive - mode servo motor - power 52KW - motor controller frequency control
5) Control appliance - contactor Siemens
6) Metering feed- mode Spiral type - motor power: 1.5kw
7) Automatic feeder - mode Spiral feeding mode - power 1.5kw
Double sprial pipe mould , speed is 6-8m.min
Double sprial pipe calibation table
Double sprial pipe hauling off and cutter machine
