High Quality PVC Spiral suction reinforced soft hose pipe plant manufacturing machine

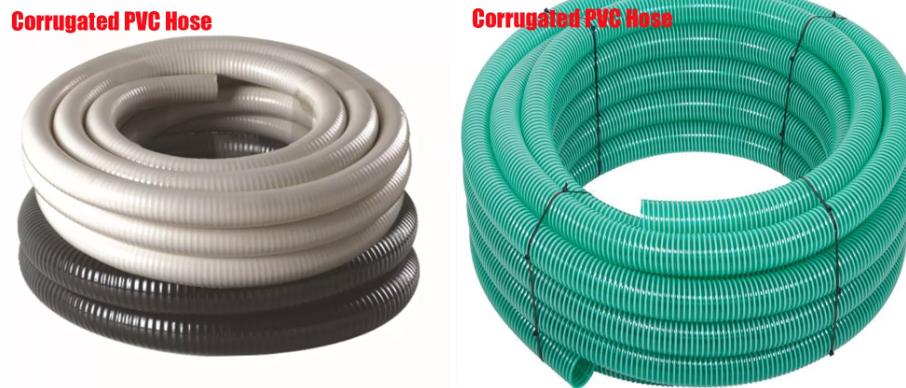

Corrugated pvc hose machine

PVC suction hose extrusion line spiral reinforced hose production line pipe extrusion machine

PVC Spiral Reinforced pipe production Line soft rigid PVC Helix Suction Hose making machine Plastic extrusion line

We test in our factory video for your check

How to change mould :

https://youtube.com/shorts/1ofLDmvNSQw?feature=share

https://youtu.be/ZtesVqz3Oas

https://youtube.com/shorts/SB9a6264XOU?feature=share

PVC braided anti shock suction hose pipe

Flexible spiral helix water delivery discharge PVC suction pipe industrial vacuum cleaner hose

Flexible Plastic Reinforced PVC Helix Water Pump Suction Discharge Spiral Tube Pipe Conduit Line Hose with Corrugated

Specification

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		weight	coil
inch	mm	mm	bar	psi	bar	psi	g/m	m
3/4	19	23	6	90	18	270	230	50
1	25	29	6	90	18	270	290	50
1-1/4	32	38	6	90	18	270	400	50
1-1/2	38	46	6	90	18	270	650	50
2	50	56	5	75	15	225	700	50
2-1/2	63	71	4	60	12	180	1170	30
3	75	83	3	45	9	135	1300	30
4	100	110	3	45	9	135	2300	30
5	125	137	3	45	9	135	3300	30
6	152	166	2	30	6	90	5500	20
8	200	216	2	30	6	90	6700	10
10	254	270	2	30	6	90	10000	10
12	305	329	2	30	6	90	18000	10
14	358	382	2	30	6	90	20000	10
16	408	432	2	30	6	90	23000	10

Application

For suction and delivery of liquids, powder, granules in industry, agriculture and construction.

Features

Flexible PVC with rigid PVC spiral reinforcement, arasion and chemical resistant, impact and crush resistant, smooth inner construction for unrestricted flow of materials.

Temperature Range  -5℃ to +65℃

VIDEO : https://youtu.be/2P4Yg1ycJ58

https://youtu.be/dgWOvTqv7EI

Application of PVC braided anti shock suction hose pipe:

As suction and transport hose especially suitable for below substance:

1 Gaseous and liquid media

2 Abrasive solids such as dusts, powders, chips and grains

3 Also ideal as ventilation hose for air conditioning and ventilation system

Features:

1 Extremely tearing-resistant with rigid reinforced PVC helix

2 Very smooth interior

3 Flexible with low weight

4 Extremely transparent

5 High tensile strength

6 Could be resistant to chemicals if requested

7 Could be resistant to UV if requested.

8 Various sizes are available

The production line is a special unit for pvc suction hose,with two extruders,forming machine,water tank and winding machine,the pipe wall are soft pvc and hard pvc to strengthen the pressure,the pipe has compression resistance,corrision resistance,negative pressure resistance,bending resistance,suitable for the transportation of gas,liquid,powder particles,mainly used in industry,agriculture,construction and irrigation and other fields.
