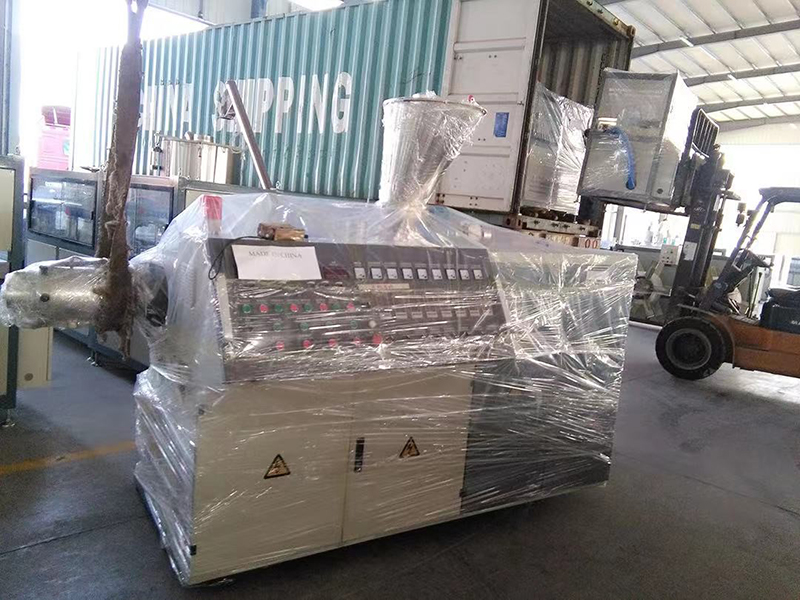

Plastic PP PE PVC profile machine

PVC WPC profile extrusion line

The PVC WPC profile extrusion line is suitable for producing hollow or solid PVC WPC foaming profiles. This profiles have advantages of fireproof, waterproof, anticaustic, moisture proof, moth proof, mildew proof, non-toxic and environmentally friendly. The profiles are widely used in the fields of interior decoration, furniture making, such as door frame, skirting,

We makes continuous research and innovation to customized extrusion process according to different demands. For all kinds of PVC profile and board, special designed screw has excellent shearing and plasticizing effect, to ensure the quality of the products; high speed cooling of extrusion and calibration mould makes the production lineal speed faster and more efficient.

The machines as following picture : extruder + mould+ calibration table + hauling off + cutter + stacker

Specification

Suitable material	Extruder Model	Extruder structure	Main power
PVC	SJSZ51/105	Twin conical screw	22kw
PVC	SJSZ65/132	Twin conical screw	37kw
PVC	SJSZ80/156	Twin conical screw	75kw
PP PE PS	SJ45/30	Single screw extruder	15kw
PP PE PS	SJ65/30	Single screw extruder	22kw
PP PE PS	SJ75/30	Single screw extruder	37kw
PP PE PS	SJ90/30	Single screw extruder	55kw

For example : PVC door frame&window frame profiles making extrusion machine

As the extrusion lines is optimized designed by referring to the lastest overseas technology, it bears the features of evenplasticization, low cutting rate,high output , and long lifespan, etc.

The temperature controlling instrument is introduced from aboard. In addition, the vacuum pump and traction engine of the auxiliary machines are quality products which can be maintained easily.

If changed certain screw and mould , this profile extrusion line can directly extrude foaming profiles.

To match with different moulds , the shape fixing platform if 4m,6m,8m, or 11m, etc can be chosen accordingly.

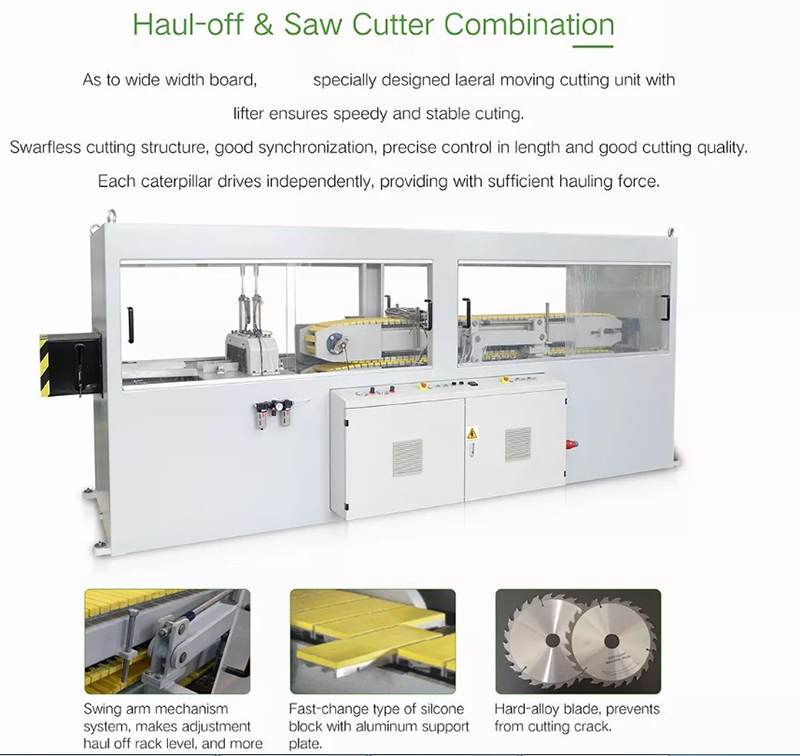

The PVC WPC door frame&window frame profiles making extrusion machine including Twin conical screw extruder,Vaccum forming calibration platform,hual-off device,cutter,stacker.

Product Paramenters

Model	Maximum width	Host model	Maximum production	Electric power
YF180	180	SJZ51/105 or SJZ55/110	80-120/120-150	18.5/22
YF240	240	SJZ65/132	175-250	37
YF300	300	SJZ65/132	175-250	37
YF400	400	SJZ80/156	175-250/250-350	37/55
YF600	600	SJZ80/156	175-250/250-350	37/55
YF800	800	SJZ65/132	280-350	55
YF1220	1220	SJZ92/188	300-350/600-700	75/110

Model	Profile Width	Extruder Model	Motor Power	Max.Extrusion Capacity	Calibrating table length
CS-200	200mm	51/105	22kw	100-120kg/h	4000mm
CS-300	300mm	65/132	37kw	150-180kg/h	6000mm
CS-400	400mm	65/132	37kw	150-180kg/h	6000mm
CS-600	600mm	65/132	37kw	150-180kg/h	8000mm
CS-600	600mm	65/132 or 80/156	37kw or 55kw	150-350kg/h	6000mm
