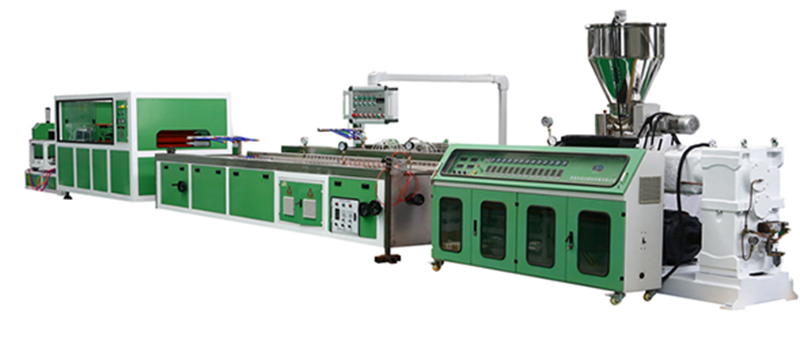

SJSZ-65/132 PVC wood plastic profile production line
Technical Parameter for complete set
Brief introduction
|
No |
item |
parameter |
|
1 |
Suitable resin |
PVC+other additives |
|
2 |
Line speed |
0-10m/min |
|
3 |
output |
180-240 kg/h |
|
4 |
Outer dimension |
26 х 1.5 х 2.5 m |
|
5 |
Power supply |
380V,50Hz,or by customer’s special requirement |
SJSZ-65/132 PVC wood plastic profile production line parameters
|
Serial No |
Equipment name |
Model |
Quantity |
Remarks |
|
1.1 |
Automatic screw feeder |
KLX-300 |
1set |
|
|
1.2 |
Conical twin screw extruder |
SJSZ-65/132 |
1set |
|
|
1.3 |
Vacuum shaping platform |
CS-6000 |
1set |
|
|
1.4 |
The traction machine |
CS-240 |
1set |
|
|
1.5 |
Cutting machine |
CS-300 |
1set |
|
|
1.6 |
Unloading device |
CS-6000 |
1set |
|
2.Technical parameter
| 1.1 CS-300 Automatic screw feeder | |||
|
（1） |
Feeding machine power |
KW |
1.5 |
|
（2） |
Diameter of feeding pipe |
mm |
Φ102 |
|
（3） |
Length of feeding pipe |
M |
4-5 |
|
（4） |
Material of conveying pipe |
|
Stainless steel |
|
（5） |
Conveying capacity |
KG/h |
300 |
|
（6） |
Bin volume |
KG |
200 |
|
（7） |
Material of material box |
|
Stainless steel |
|
（8） |
Supply voltage |
|
380V/50HZ |
1.2 SJSZ-65/132 Conical twin screw extruder
| （1）Screw&Screw | |
| Screw diameter: | Φ65/Φ132mm |
| Number of screws: | 2 |
|
Screw rotation: |
Synchronous reverse outward rotation |
|
Screw hardness: |
HV＞740 |
|
Barrel hardness: |
HV＞940 |
|
Screw and screw barrel materials: |
38CrMoAIA nitriding treatment |
|
Nitriding layer depth of screw barrel: |
0.4-0.7mm screw barrel is sprayed with alloy at the front |
|
Heating mode: |
Heating of cast aluminum heating ring |
|
Main engine speed regulation mode: |
Frequency conversion speed regulation |
| （2）Reducer&distribution box | |
|
Installation type: |
Horizontal installation |
|
Reducer: |
Hardened reducer |
|
Gear material: |
20CrMnTi is carburized and quenched, with hardness of HRC58-62 degrees. It is processed by gear grinding to ensure gear transmission accuracy and reduce noise. |
|
Cooling mode: |
The gear oil is cooled by flushing water through the condenser |
|
Imported thrust bearing: |
High torque output |
| (3) Twin screw forced feeding | |
| Feeding mode: | Automatic twin screw metering and conveying |
| Speed regulation mode: | Frequency control |
| (4) Electrical control system | |
| Contactor: | SIEMENS |
|
Temperature control meter: |
Omron/Delta |
|
Frequency converter: |
ABB/Delta |
|
Air switch of circuit breaker: |
SCHNEIDER |
1.3 CS-6000 Vacuum shaping platform
|
Platform length: |
4000mm |
|
Mold installation guide: |
High quality aluminum alloy profile with T-groove |
|
Use of vortex fan: |
Water stains on the surface of dried products |
|
Setting table adjustment: |
Up and down adjustment is worm gear box and screw rod adjustment Left and right adjustment is screw rod adjustment The water bracket of the sizing table is adjusted by worm gear box and screw rod |
|
Length of electric mobile device: |
800mm |
|
Model of planetary cycloidal reducer (moving forward and backward): |
1.1KW cycloidal pinwheel reducer motor is used for adjustment |
1.4 CS-240 The traction machine
|
Traction mode: |
Double track traction |
|
|
Rubber block material: |
Silica gel |
|
|
Rubber block width: |
240mm×1排 |
|
|
Clamping type: |
Cylinder crank arm type |
|
|
Speed regulation mode: |
Frequency conversion speed regulation |
|
| 1.5 CS-300 Cutting machine | ||
| Clamping type: | Pneumatic | |
| Cutting size: | 10-300mm | |
| 1.6、CS-6000 Full automatic line discharge device
|
||
|
Length: |
6000mm |
|
|
Table material: |
Stainless steel |
|
|
Discharge mode: |
Use cylinder |
|
|
Discharge form: |
Automatic unloading |
|
